posted by sakurai on August 15, 2026 #1105

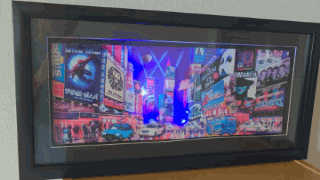

修理が完成した製品の動作の状況を示します。これはモード1の、青がフェードアウトしていき、赤がフェードインするモードです。白はLED自体にチラツキ回路が入っているようです。

図1105.1
図1105.1 完成図
